Room Fit-Out

• 2.6kW Air conditioner
• Vent for hot air to outside; 2x Noctua NF-A15
• Every cable has a label
• Fiber ONT placed adjacent to racks location
• Mains outlet behind rack
• Pass-Through hole behind rack (ethernet, satellite)
• 2x Unifi AC_Lite Wifi 5 in roofspaces for wireless access
• 3.92 square meters (1.4 x 2.8)
• Furnishings
  • Desk drawers each side
  • Hardwood table top cut to fit (60 x 223cm)
  • Closet next to desk
  • Murphy Bed above desk

The Rack

Samson SRK8 19" audio system rack, low depth of 45cm.

Racked Equipment

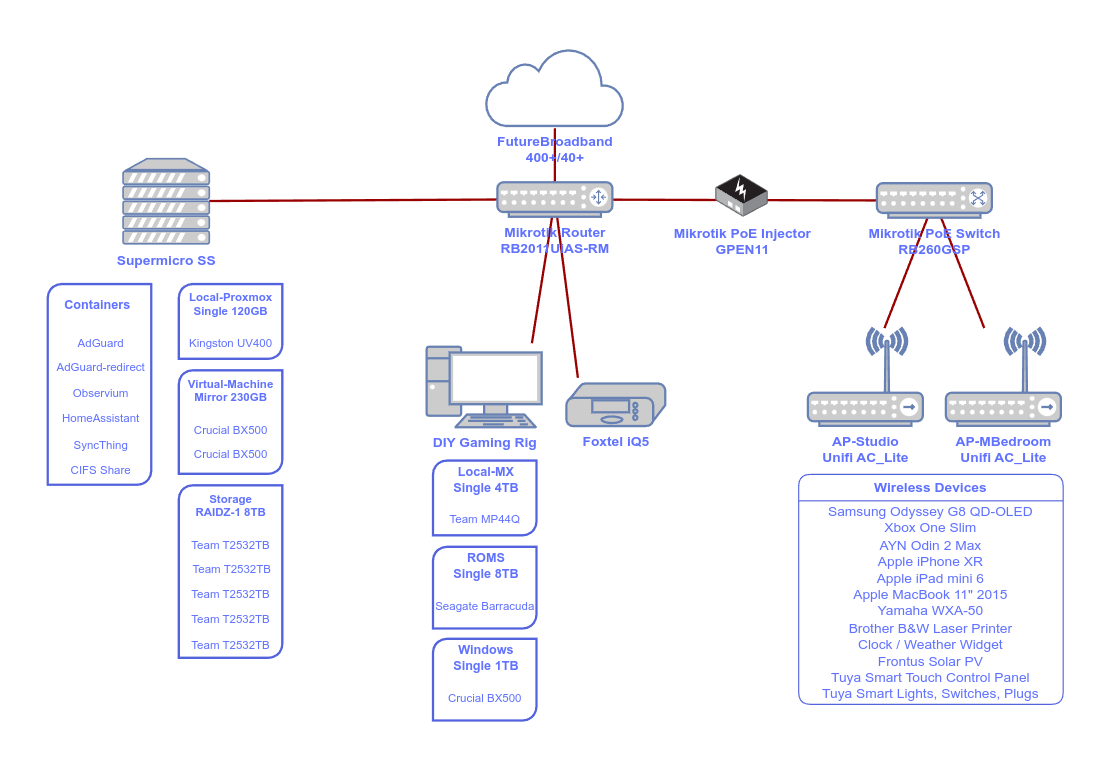

• Router: Mikrotik RB2011UiAS-RM
• Server: Supermicro Super Server (5018A-TN4)
• PC: DIY Gaming Rig
• UPS: PowerShield Centurion RT1000
• Power: 8 port GPO Serveredge SEDG-8P-GPO-C14

Shelfed Devices

• Cable TV: Foxtel iQ5
• Video feeds: Viture One XR Glasses, 22" bedside monitor, Razer Ripsaw X capture card
• Sound feed: Bedside Samsung C450 soundbar/subwoofer
• Amplifier: Yamaha WXA-50
• Computer Speakers: Accusound Bookshelf 100w 87db 8ohm
• Subwoofer: Presonus Temblor T10, AB 250w, LP 90Hz, Source -6Db, Gain -30Db

Power Delivery

UPS - PowerShield Centurion RT1000 1000VA/900w

• True/online double conversion
• Typical use 10-50%
• Powers all equipment (excluding air con)

Generator - Gentrax GT2000 PRO

• 2Kw of power, enough for all systems
• 10L unleaded - 10 hours runtime

24/7/365 Low-Noise Server

• Supermicro Super Server (5018A-TN4)
• Intel Atom C2750
• Hynix 8gb CL11 1600Mhz
• Fan replacement Noctua NF-A4x20
• Disks
  • LSI Card
  • Proxmox Boot 120gb
  • Storage RAIDZ-1 5x2tb
  • Virtual-Machines Mirror 2x240GB
• Proxmox
• AdGuard malware protection. Encrypted, no logs (inc upstream)
• Apache, Redirect for AdGuard blocked message
• HomeAssistant
• Observium
• SyncThing
• CIFS share

Gaming Rig

Assembled April 2022, linux switch 1/1/24, cpu re-pasted 20/02/25.

• OS: MX Linux
• Desktop: Xfce
• PSU: SilverStone ST1000-PT
• Motherboard: B450 AORUS M
• Fans: 1x NF-F12 120mm, 2x NF-A8 FLX 80mm, 2x NF-A6x25 60mm
• CPU Cooler: Noctua NH-U12S duel fans push/pull
• CPU: x86_64-v2 AMD 5800x
• RAM: G.Skill Flare 32GB 4xF4-3200C14-8GFX CL14-14-14-34 1.35V
• Graphics: Palit GameRock OmniBlack RTX 4070 Ti Super 16GB
• NvMe: 4TB Team Group MP44Q TM8FFD004T
• SSD: 1TB Crucial BX500 (Windows)
• HDD: 8tb Seagate Barracuda (ROMS)
• Case: TGC-43901 modded for extra intake fans

Monitor Setup

• Monitor: Samsung Odyssey OLED G8 34" 175Hz UWQH [LS34BG850SEXXY]
• Lightbar: BenQ ScreenBar
• Macro Pad: Stream Deck Original v2
• Clock: GeekMagic SmallTV-Ultra

Desk Setup

• Mouse: Razer Deathadder v2
• Controllers: Wireless HORIPAD for Steam & 8BitDo Pro 2
• Overhead Shelf: above monitor (12 x 87 cm)
• Side Triangle Shelfs: increases usable space

Keyboards

• Idobao id80 v2 75% integrated mount
• Switches: Gateron Baby Racoon, F row Kailh Box Royal
• Keycaps: Matt3o MT3 /dev/tty, Dwarf Factory Terrarium V2 Rasta Jardin

• Tofo60 2.0 60%, tadpole mount, 6.25 space, 1.75 rshift, 2 backspace
• Switches: Gateron CJ unlubed
• Keycaps: MiTo XDA Canvas

• Bully 40%, tadpole mount, custom plate, case foam, 6 space, 1&1 backspace
• Switches: Gateron Milky Yellow
• Keycaps: Matt3o MT3 /dev/tty, Dwarf Factory Terrarium V2 Rasta Jardin

• Vortex Core 40%, raised back feet, custom firmware
• Switches: Cherry MX Blue
• Keycaps: biip MT3 Operator

Under Desk

• USB Power: CordTech High Powered USB Charger 2x USB-A, 2x USB-C
• PC RearIO access: USB 3.0 USB-A
• PC RearIO access: USB 3.0 Card Reader
• Cable MGT: 1mm gal steel sheet under desk with LTT Store Magnetic Cable Management

References

• NBNco Corporate Information
• Mikrotik RB2011UiAS-RM manufacture product page
• Future Broadband. Referal code for discount: EB7826
• Speedtest Result
• PowerShield Centurion RT1000 User Manual
• Gentrax GT2000 PRO User Manual
• under desk USB port mount 3D print file
• Aliexpress Mini Smart Wifi

Blacklisted brands

Due to moral or personal reasons I don't support: Asus, Logitech, Corsair, NZXT
